A Guide to AT-Cut Crystals

As long as a crystal does its job, most of us don't really care about how it's made or how it works. But sometimes, it's handy to know the basics, if only to debunk some of the over-the-top performance claims you might see in data sheets.

Wafers from which crystals are made for electronics applications are cut from quartz stones. The direction of cut determines the vibration mode of the crystal, its frequency-temperature characteristics, how it will age, and various other parameters.

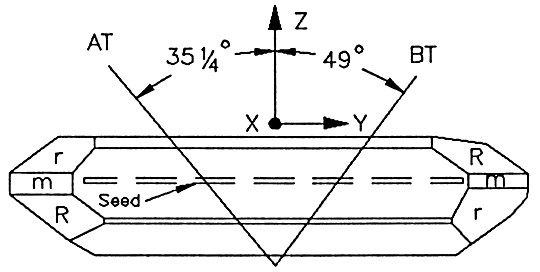

Approximately 90% of all crystals used in for timing and frequency applications are called AT-cut. This means that the stones are cut at an angle of 35 ° 15’ from the Z-axis.  The AT-cut is popular because of the temperature characteristics of the resulting crystals. They can be used from -40 °C to + 125 °C and have an inflection point (the symmetry point from which the frequency goes higher or lower with temperature) of 25 °C.

The angle of the cut is particularly critical where a batch of crystals must demonstrate the same characteristics. Here, industry-standard practice is to specify the angle of the cut to within ±15 seconds of a degree (or 0.0042 of 1 degree). There may also be times when the angle of cut is deliberately altered slightly in order to achieve a desired change in temperature characteristics.

As with all electronic components, very tight tolerance parts will cost more than those with less tight tolerances, primarily due to the more limited yields that can be achieved at tighter tolerances.

It’s interesting to note that the temperature-frequency characteristics of an AT-cut crystal are symmetrical. That’s why you’ll see specifications for crystals quoted as being from 0 °C to 50 °C, -10 °C to + 60 °C, -20 °C to +70 °C etc. These specified temperature ranges are all symmetrical around 25 °C.  It follows that the ‘industrial’ temperature range of -40 °C to +85 °C, often used to characterize other electronic components, including semiconductors, is not the most appropriate way to specify a crystal. The nearest equivalent temperature range that would be appropriate is -40 °C to +90 °C.

So, if you see a reference design that demands a crystal with ±10 ppm stability from -40 °C to +85 °C, treat it with caution.

Historical note

The AT-cut crystal will be 90 years old in 2024. Messrs. F.R. Lack and G. W. Willard discovered it in 1934, along with its BT-cut counterpart, while working at Bell Telephone Labs, part of AT&T.  The pair, together with a colleague, Mr. I. E. Fair, published a seminal article on crystals entitled “Some Improvements in Quartz Crystal Circuit Elements” in the July 1934 edition of the Bell Labs Technical Journal. You can obtain a copy from the Wiley Online Library here.
