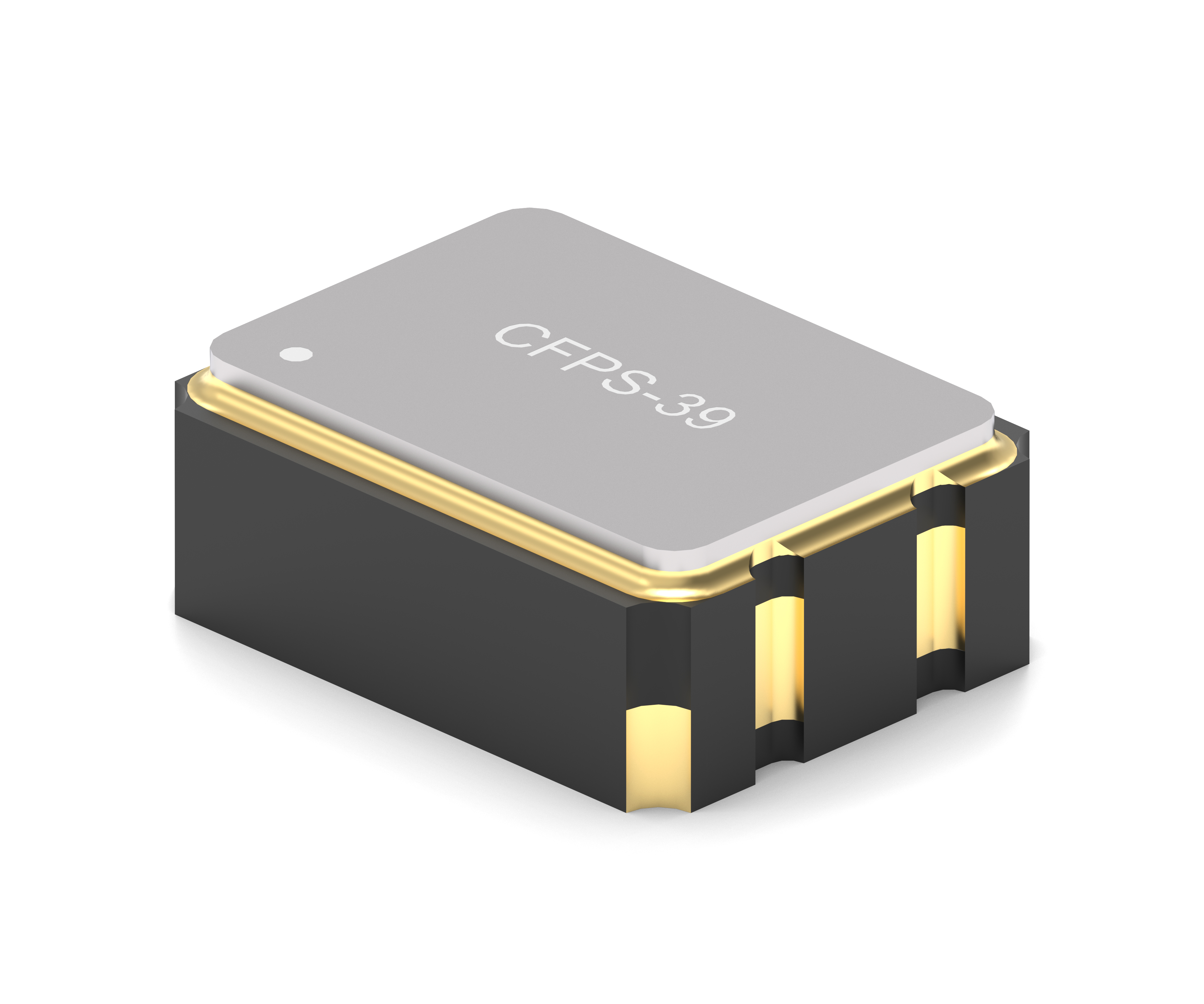

CFPS-39 Clock Oscillator
Description
Surface mount 3.2 x 2.5mm crystal oscillator in a hermetically sealed ceramic package with a seam sealed metal lid.
Fast Make capability: CFPP-39 programmable oscillator is the nearest equivalent fast-make model.
| Package |
3.2 x 2.5 x 1.2 mm |
| Frequency | 1.8MHz to 170.0MHz |
| Frequency Stability | ±50.00ppm to ±100.00ppm |
| Ageing | ±5ppm max per year @ 25°C |
| Operating Temp Range |
-40 to 85°C, -20 to 70°C |
| Supply Voltage | 3.3 V ±10% |
| Output Compatibility | CMOS |
| Drive Capability | 15pF |
Part numbers available in the CFPS-39 model:
| IQD Part No | Frequency | Frequency Stability | Operating Temperature | Voltage | Applications | Reference |
| LFSPXO072453 | 26 MHz | ±25ppm | -40°C to 85°C |
3.3 V |
CAN, Bluetooth, GPS, Small Cell |
830207245309 |
| LFSPXO076709 | 125 MHz | ±25ppm | -40°C to 125°C | 3.3 V | Ethernet, PHY | 830207670909 |
| LFSPXO025019 | 32 MHz | ±50ppm | -40°C to 85°C | 3.3 V | Processor, Bluetooth | 831025019 |
| LFSPXO025165 | 25 MHz | ±50ppm | -40°C to 85°C | 3.3 V | Processor, USB, 3G/4G/5G, Ethernet, Small Cell, PHY, PCI Express | 831025165 |
| LFSPXO025166 | 48 MHz | ±50ppm | -40°C to 85°C | 3.3 V | Processor, USB, Wi-Fi | 831025166 |
| LFSPXO025492 | 12 MHz | ±50ppm | -40°C to 85°C | 3.3 V | Processor, USB, CAN | 831025492 |
| LFSPXO025495 | 20 MHz | ±50ppm | -40°C to 85°C | 3.3 V | Processor, CAN, USB, Ethernet, Wi-Fi | 831025495 |
Many more parts available in this model, find datasheets here.
