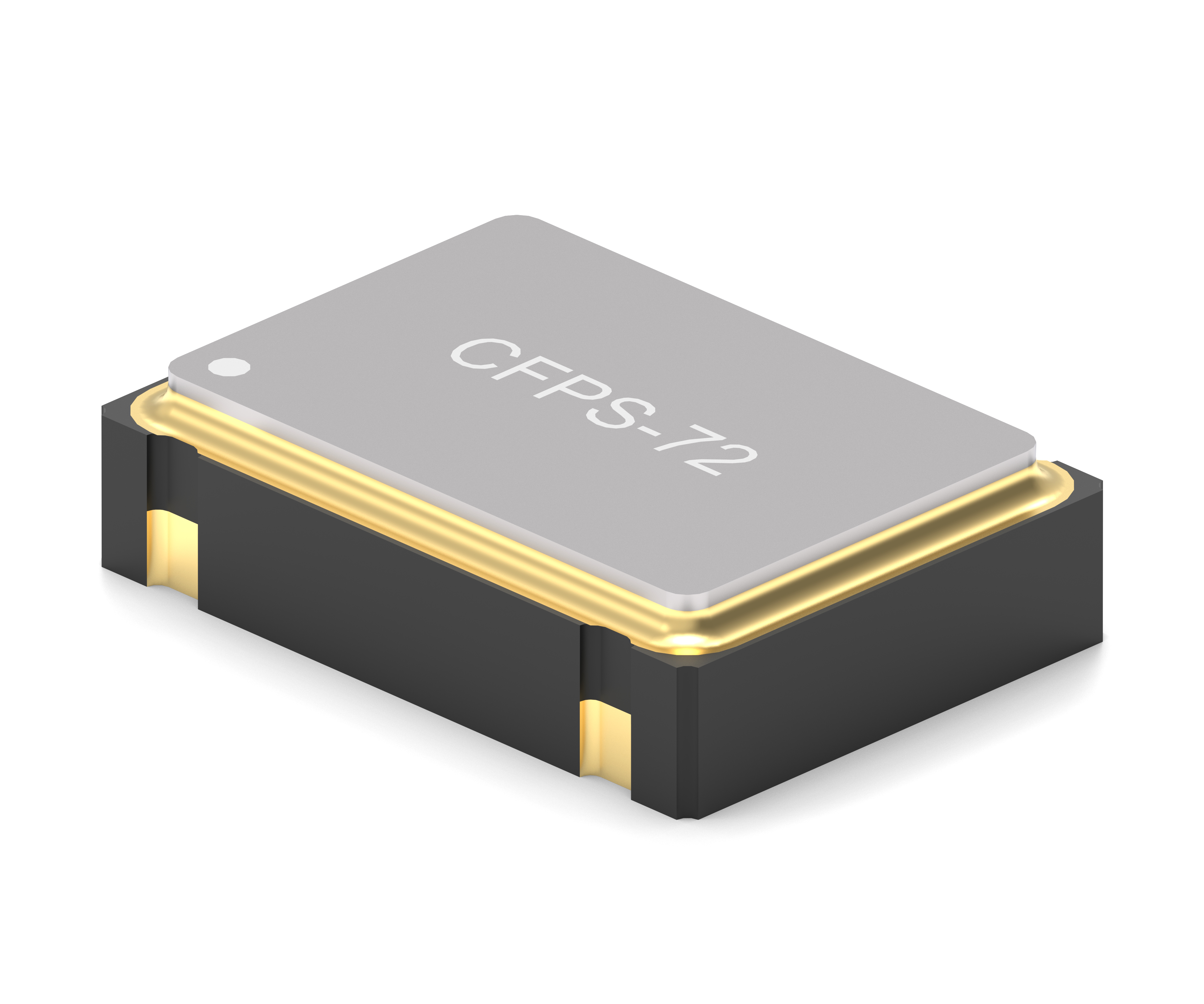

CFPS-72 Clock Oscillator

Description

Standard 7.0 x 5.0mm crystal oscillator in a ceramic package with a seam sealed metal lid, hermetically sealed. Stock parts are available.

Package

7.0 x 5.0 x 1.8 mm

Frequency 500 kHz to 160.0MHz
Frequency Stability ±50.00ppm to ±100.00ppm
Ageing ±5ppm max per year
Operating Temp Range

 -40 to 85°C, -20 to 70°C

Supply Voltage 5.0 V ±10%
Output Compatibility CMOS
Drive Capability 15pF, 30pF max

Part numbers available in the CFPS-72 model:

IQD Part No Frequency Frequency Stability Operating Temperature Voltage Applications Reference
LFSPXO020502  4 MHz ±50ppm -40°C to 85°C

5.0 V

CAN, Processor

831020502

LFSPXO018871  48 MHz ±100ppm -40°C to 85°C 5.0 V Processor, USB, Wi-Fi 831018871
LFSPXO019137  40 MHz ±50ppm -40°C to 85°C 5.0 V Processor, USB, 3G/4G/5G, CAN, Wi-Fi 831019137
LFSPXO019275 16 MHz ±50ppm -20°C to 70°C 5.0 V Processor, CAN, Bluetooth 831019275
LFSPXO019805 48 MHz ±50ppm -40°C to 85°C 5.0 V Processor, USB, Wi-Fi

831019805

LFSPXO018787 20 MHz ±50ppm -40°C to 85°C 5.0 V Processor, CAN, USB, Ethernet, Wi-Fi 830201878701
LFSPXO021292 8 MHz ±50ppm -40°C to 85°C 5.0 V

Processor, UART

830202129201

Many more parts available in this model, find datasheets here.
