Atomic Clock
Description

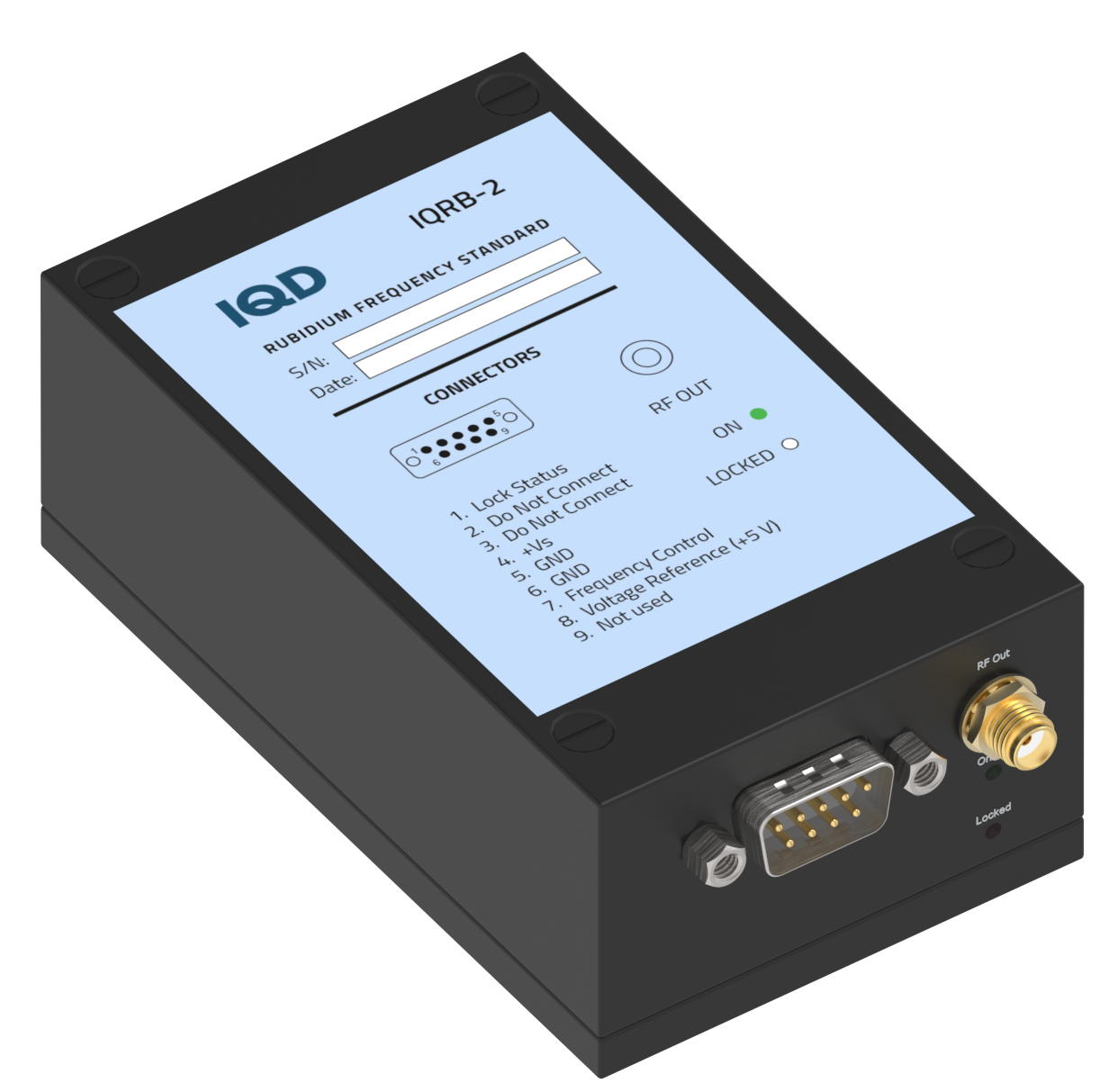

The IQRB-2 rubidium atomic clock oscillator provides a low noise, tight stability frequency reference. Low phase noise/Low Jitter. Tight stability. Precise time and frequency reference in mobile radio stations, as reference signal in test and inspection equipment, broadcasting stations, and various other communication and network infrastructures.
| Package |
101.2 x 60.7 x 37.7 mm |
| Frequency | 10.0 MHz |
| Frequency Stability | ±0.05ppb |
| Ageing | ±0.05ppb max per month |
| Operating Temp Range |
-20 to 60°C |
| Control Voltage | 2.5V ±2.5V |
| Pulling | ±2ppb min |
| Output Compatibility | Sine or CMOS |
| Drive Capability | 50 Ohms |
| IQD Part No | LFRBXO076289B |
For more information about any of our parts or for help with your design-in, you can contact our Sales Team, Application Support or Engineering on +44 (0) 1460 270200, or click Contact Us below to submit your enquiry.
