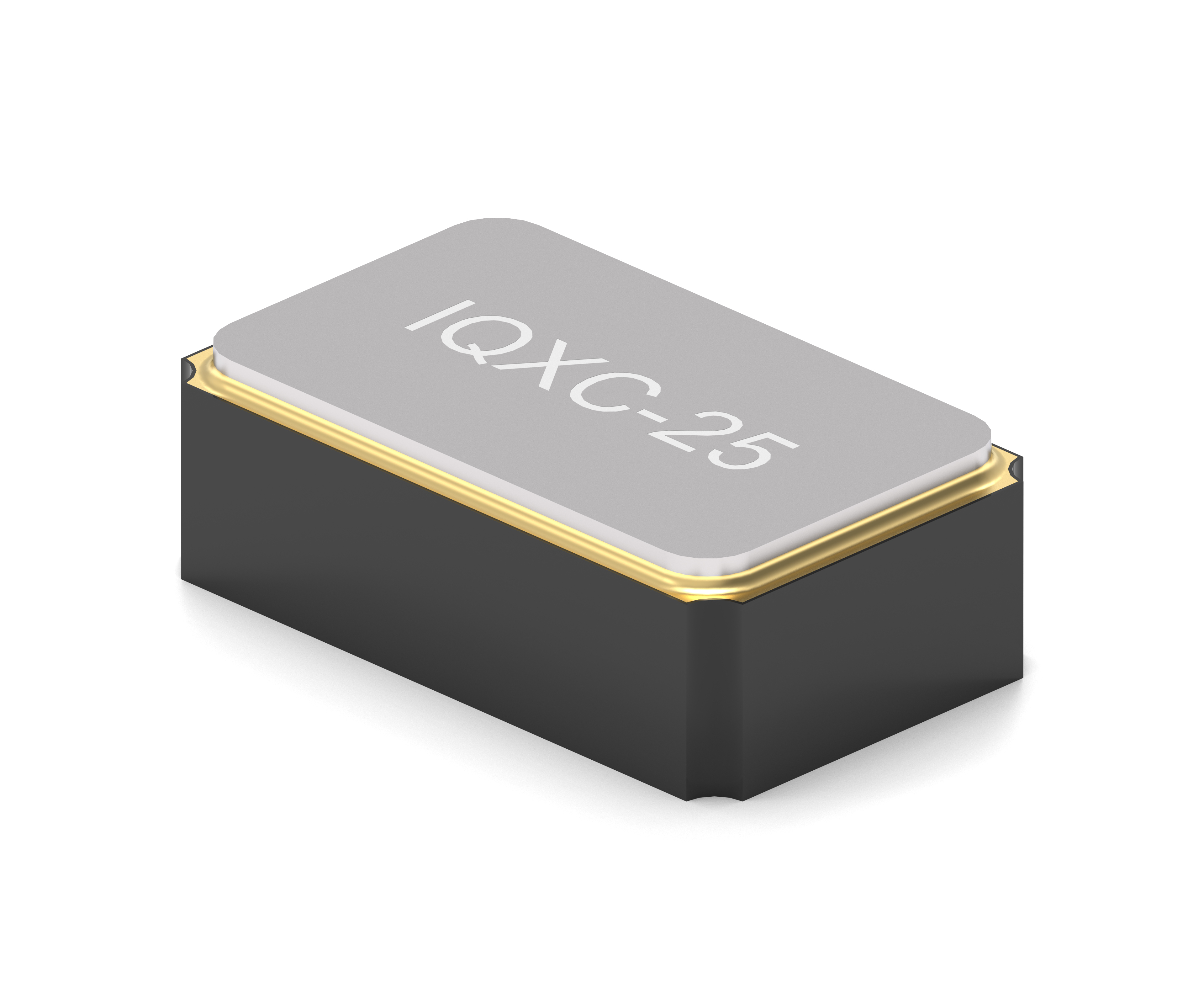

IQXC-25 Watch Crystal

Real Time Clock

Description

Standard 2.0 x 1.2 x 0.6 mm SMD watch crystal hermetically sealed ceramic package with an electron beam sealed lid. Suitable for real time clock (RTC) applications.

Package

2.0 x 1.2 x 0.6 mm

Frequency 32.768 kHz
Frequency Tolerance ±20.00ppm
Frequency Stability See spec
Ageing ±3ppm max per year @ 25°C
Operating Temp Ranges

-40 to 85°C

-40 to 105°C

Load Capacitance (CL) 5.0pF to 12.50pF
Shunt Capacitance (CO) 1.3pF typ, 1.7pF max
Drive Level 0.1μW recommended, ±0.5μW max

 Part numbers available in the IQXC-25 model:

IQD Part No Frequency Load Capacitance Tolerance Operating Temperature Reference
LFXTAL050789 32.768 kHz 12.50pF ±20ppm -40°C to 85°C 830050789
LFXTAL062558 32.768 kHz 9.00pF ±10ppm -40°C to 85°C 830062558
LFXTAL059461 32.768 kHz 7.00pF ±20ppm -40°C to 85°C 830105946101
LFXTAL065455 32.768 kHz 6.00pF ±20ppm -40°C to 85°C 830106545501
LFXTAL073264  32.768 kHz 4.00pF ±20ppm -40°C to 85°C 830107326401

ORDER DIRECT FROM IQD - Contact our Sales Team +44 (0)1460 270200
