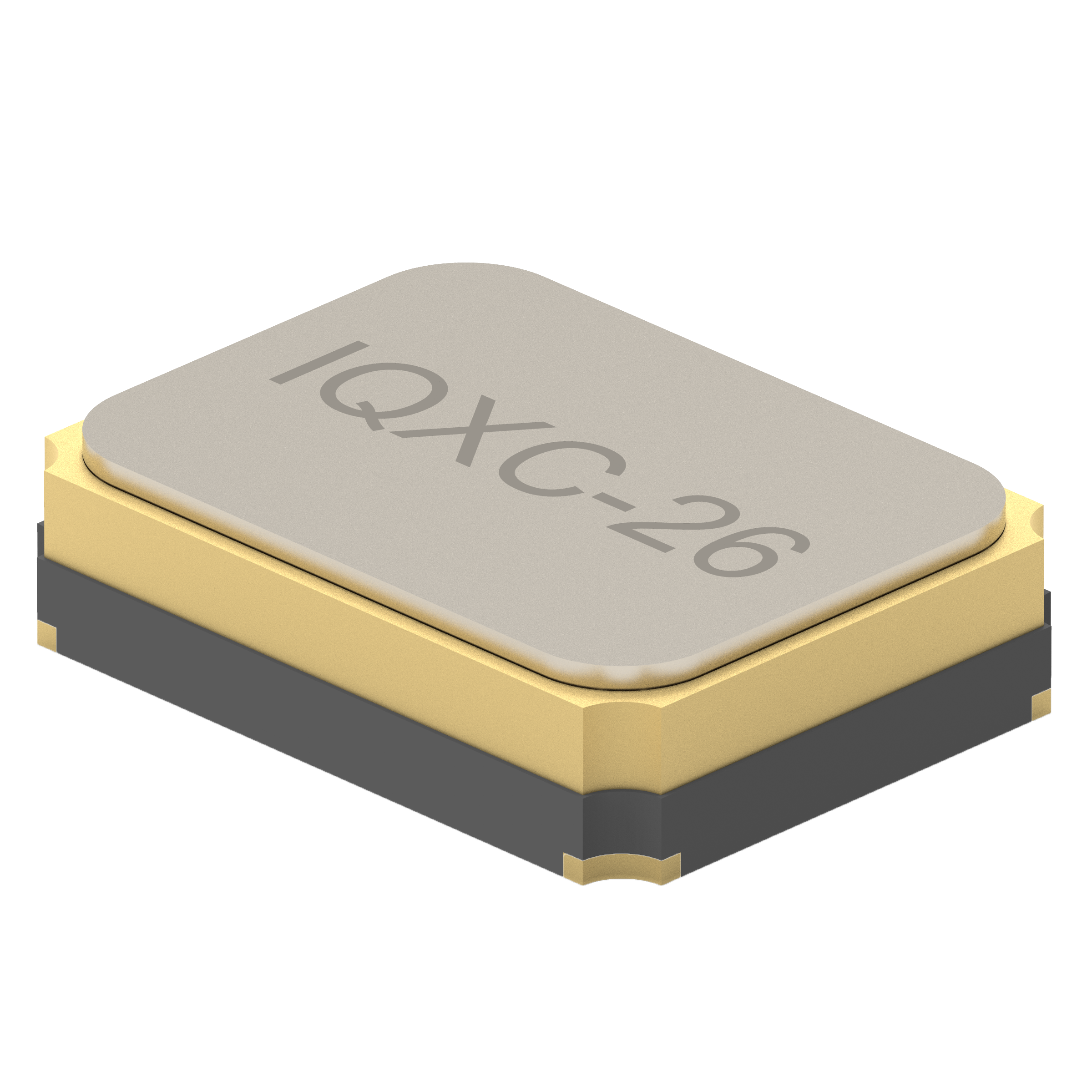

IQXC-26 Quartz Crystal
Description
Standard 1.6 x 1.2 x 0.4 mm SMD quartz crystal electron beam sealed ceramic package.
| Package |
1.6 x 1.2 x 0.4 mm |
| Frequency | 24.0 MHz to 60.0 MHz |
| Frequency Tolerance | ±10.00ppm to ±50.00ppm |
| Frequency Stability | ±15.00ppm to ±50.00ppm |
| Operating Temp Ranges |
-20 to 70°C, -40 to 85°C |
| Load Capacitance (CL) | 8.0pF to 30.0pF |
| Shunt Capacitance (CO) | 3pF max |
| Drive Level | 100μW max |
Part numbers available in the IQXC-26 model:
| IQD Part No | Frequency | Stability | Tolerance | Operating Temperature | Reference |
| LFXTAL066742 | 26 MHz | 15ppm | ±15ppm | -20°C to 70°C | 830066742 |
| LFXTAL072541 | 27 MHz | 20ppm | ±10ppm | -20°C to 70°C | 830072541 |
| LFXTAL072539 | 24 MHz | 15ppm | ±15ppm | -20°C to 70°C | 830072539 |
| LFXTAL069528 | 48 MHz | 15ppm | ±15ppm | -20°C to 70°C | 830069528 |
| LFXTAL069527 | 40 MHz | 15ppm | ±15ppm | -20°C to 70°C | 830069527 |
| LFXTAL069526 | 32 MHz | 15ppm | ±15ppm | -20°C to 70°C | 830069526 |
| LFXTAL081608 | 24 MHz | 20ppm | ±10ppm | -40°C to 85°C | 830108160801 |
| LFXTAL081610 | 27 MHz | 20ppm | ±10ppm | -40°C to 85°C | 830108161001 |
| LFXTAL081612 | 30 MHz | 20ppm | ±10ppm | -40°C to 85°C | 830108161201 |
| LFXTAL081613 | 32 MHz | 20ppm | ±10ppm | -40°C to 85°C | 830108161301 |
| LFXTAL081619 | 40 MHz | 20ppm | ±10ppm | -40°C to 85°C | 830108161901 |
| LFXTAL081609 | 25 MHz | 20ppm | ±10ppm | -40°C to 85°C | 830081609 |
| LFXTAL081620 | 48 MHz | 20ppm | ±10ppm | -40°C to 85°C | 830081620 |
| LFXTAL081616 | 37.4 MHz | 20ppm | ±10ppm | -40°C to 85°C | 830108161601 |
Many more parts available in this model, find datasheets here.
