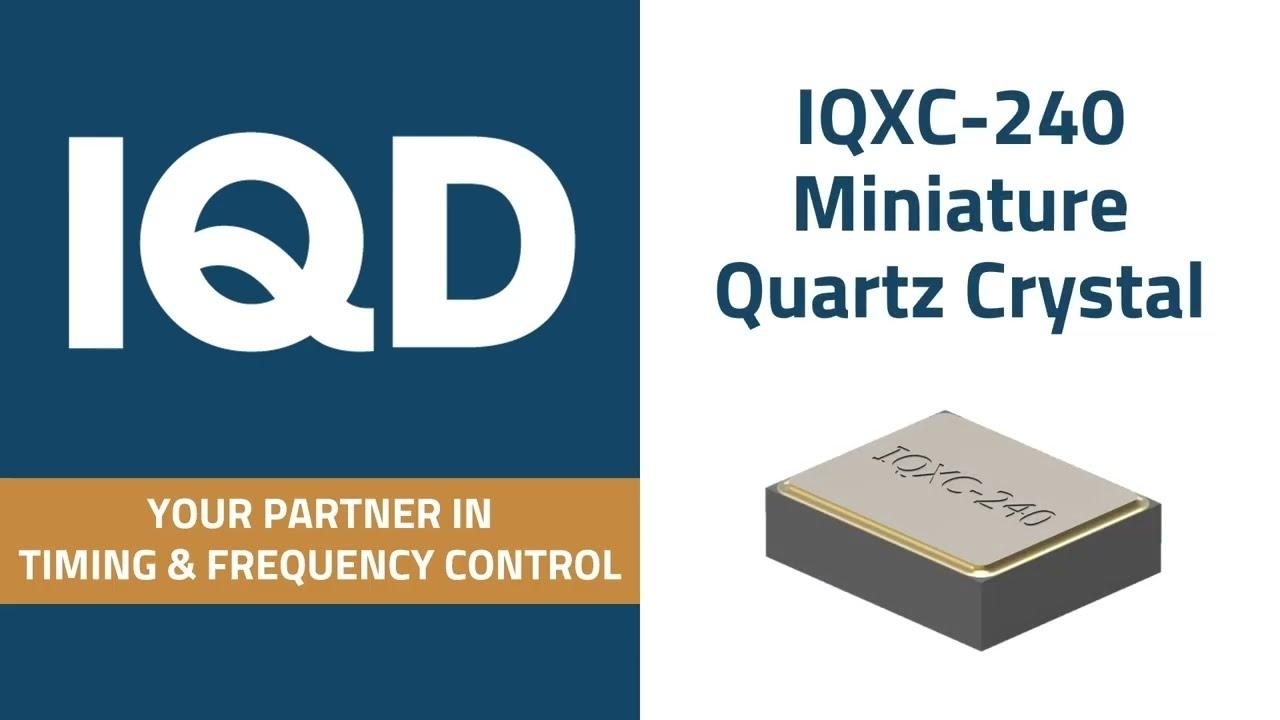

IQXC-240 - Miniature Quartz Crystal

Discover the IQXC-240: Ultra-Compact Quartz Crystal for High-Performance Applications.

Quartz Xtal IQXC-240, one of the world’s smallest quartz crystals, measuring just 1.2 x 1.0mm with a height of 0.33mm. Engineered for space-constrained designs, this crystal supports frequencies from 32MHz to 80MHz, making it ideal for IoT, VGA, USB, and Wi-Fi applications.

Key Features:

• Exceptional Frequency Stability: As low as ±10ppm** (commercial: -20 to +70°C) and ±15ppm (industrial: -40 to +85°C)
• Precision Tolerance: Down to ±7ppm
• Low Load Capacitance: Starting at 5pF, optimized for modern microprocessor requirements
• Robust Packaging: 4-pad ceramic hermetically sealed with an electron beam sealed metal lid to reduce EMI radiation
• Shock Resistance: Withstands up to 1000G per IEC 60068-2-27
• Tape & Reel Availability: Supplied in accordance with EIA-481D

The IQXC-240 is a compact, high-reliability solution for electronics engineers seeking performance and miniaturisation.

View IQXC-240 Miniature Quartz Crystal model page.
