IQXO-116 - High Stability & Low Phase Noise OCXO

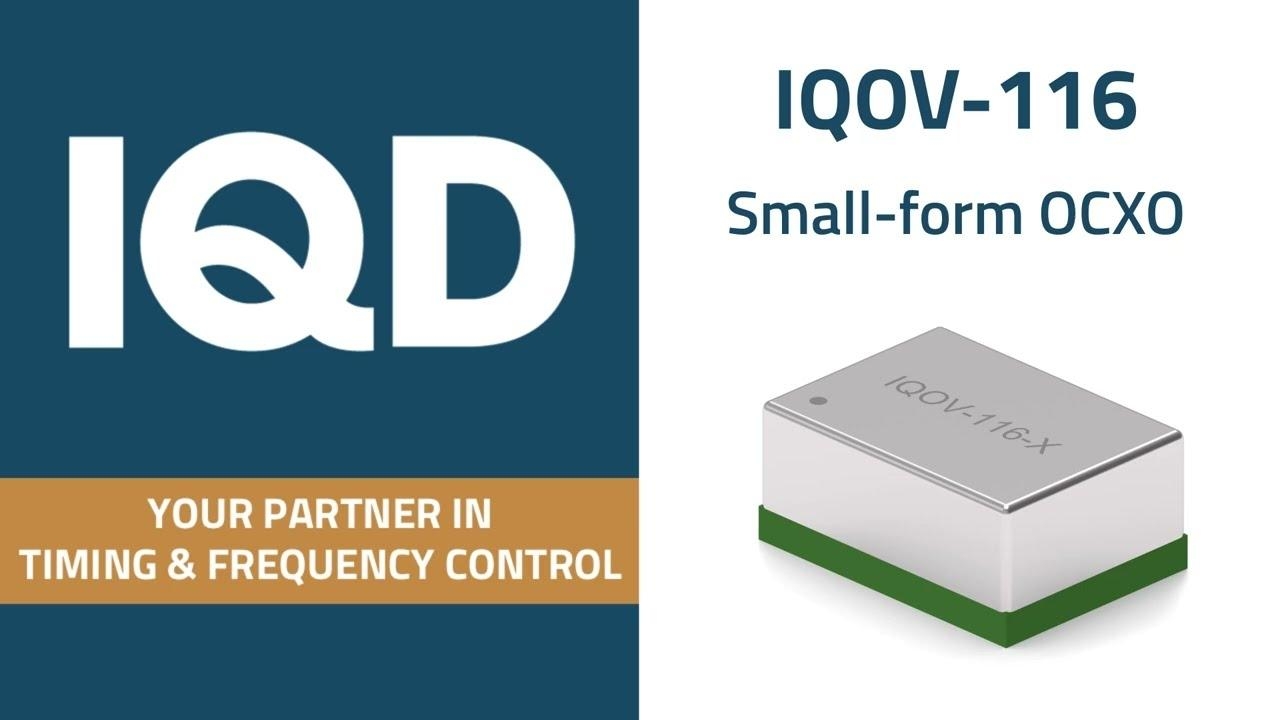

This extended operating temperature range of OCXOs offers high stability in an extremely small 7.5 x 5.5 mm surface mount package. It is the smallest SMD OCXO in the IQD range and brings OCXO performance down to the size of standard 7x5mm clock oscillators.

IQOV-116 series has a HCMOS output and boasts a range of features including high stability of ±20 ppb over a wide temperature range of -40 to 95 °C, low phase noise (-150 dBc/Hz typ @ 1 KHz), 3.3 V supply voltage and low power consumption at 230 mA steady state. It comes in three standard frequencies: 10.0 MHz, 19.2 MHz and 20.0 MHz.

Ideal for applications:

• wireless communication
• small cells and further
• communication infrastructure
• frequency reference and measurement systems

An OCXO offers frequency stabilities much tighter than those seen in standard clock oscillators (SPXO) and even from TCXOs. The frequency drift of the quartz crystal, due to temperature shift, is reduced to a minimum by heating the crystal in an oven and holding the temperature of the quartz at a fixed point.
