Quartz Crystals MHz

Quartz Crystals MHz

Quartz Crystals MHz

IQD offers an extensive choice in MHz crystal parts with frequencies from 0.5 to 250MHz. These higher frequencies are typically used in critical applications involving data transmission such as wireless communication devices, industrial applications, ethernet, IoT, wearable devices, optical network, audio and multimedia devices, test and measurement equipment.

IQD’s MHz crystal product portfolio includes SMD and THT models, miniature packages (from 1.2 x 1.0mm), and tighter stability (Β±10ppm), extreme environmental specifications, low ageing, low height, and extended operating temperature options. We can also offer higher frequency options in fundamental mode. Additionally, IQD can offer made-to-order and customizable product options. We offer parts qualified to AEC-Q200 standards. Our manufacturing sites are accredited to AEC Q200 (Rev D)/IATF 16949:2016 and, if requested, we can supply automotive frequency control products with full PPAP levels 1 to 5 documentation.

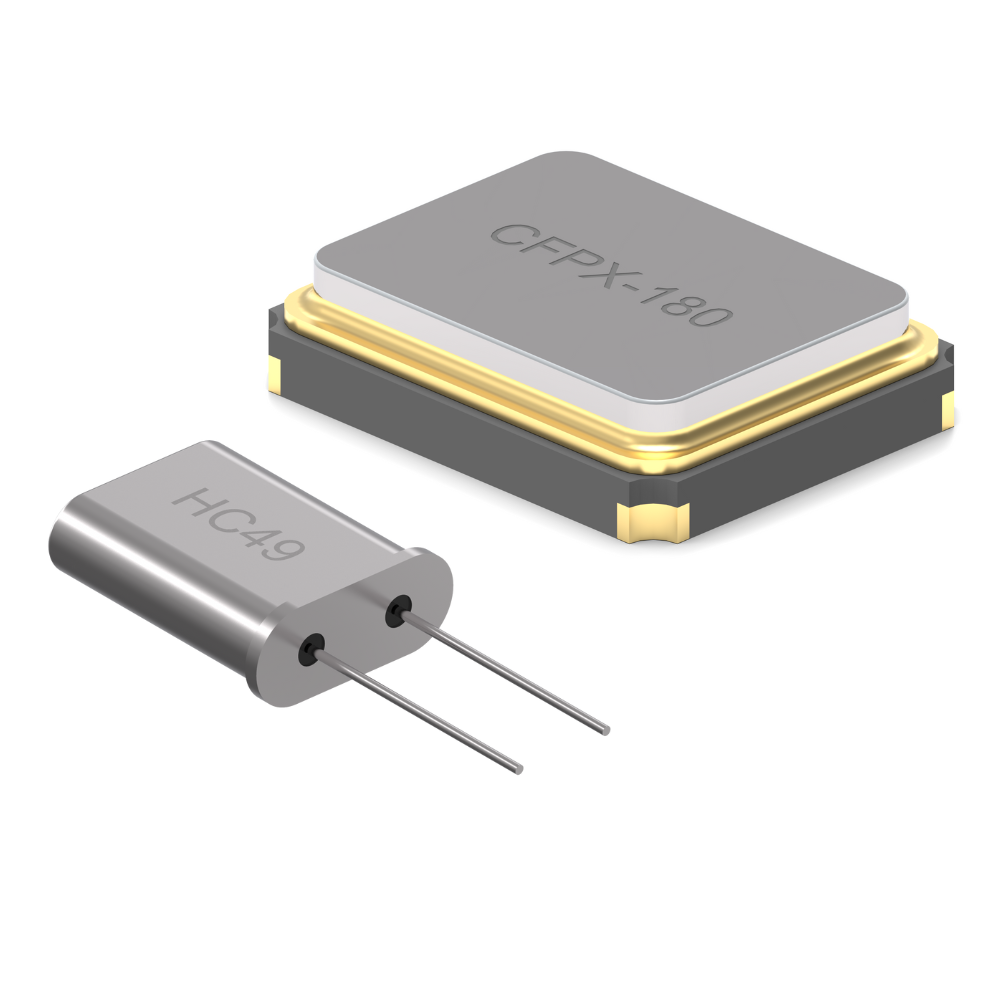

IQD Category Crystal MHz Square

Key Features

  • Frequency range offered by IQD: 0.5 - 250MHz
  • Package sizes IQD offers: from 1.2 x 1.0 mm
  • Temperature range from -55 to +200 deg C
  • Automotive compliance: AEC-Q200 qualified options

IQD is also a global distribution partner for Statek Corporation’s highly specialised photolithographic process based quartz crystals and oscillators that offer very high environmental performance.

Featured Products and Applications

CFPX-180 – Industry standard, low-height SMD, 3.2 x 2.5mm. Remote control systems, wireless charging, wearable monitors for elderly patients, smart hubs, smoke alarms and more.

CFPX-104 – Industry standard, SMD crystal,5.0 x 3.2 mm. Recently used in manufacture of wind turbines.

HC49/4HSMX – Industry standard, SMD crystal package. Recently used in temperature control units, arcade gaming entertainment systems

HC49/4H – Industry standard leaded package – Recent applications include: EV charging points, ticket machines, 4G adapters, smart meters, data analysers

HC49 – Industry standard leaded package – Recent applications include: Railway signalling and communication systems

IQXC-26 – Industry standard, low height SMD, 1.6 x 1.2 mm – Recent applications include tracking devices, microcontrollers and mini card reader

IQXC-42 – Industry standard, SMD, 2.0 x 1.6 mm – Recent applications include industrial telemetry, tracking devices, Bluetooth radio, room climate control panel

IQXC-180 Auto – 3.2 x 2.5 mm – Recent applications include: airplane assembly board, server

12SMX-B – Industry standard, SMD, 7.0 x 5.0 mm – Recent applications include: Energy meters, automation systems, Motor-assisted therapy devices, fire alarm systems for the deaf, robot control

87SMX – Industry standard product, SMD, 13.1 x 5.0 mm – Recent applications include fetal Doppler (ultrasound device)

UM1 – Industry standard THT product – Recent applications include farm animal ear tagging and monitoring

Contact Us

Contact Us

For more information about any of our parts or for help with your design-in, you can contact our Sales Team, Application Support or Engineering on +44 (0) 1460 270200, or click Contact Us below to submit your enquiry.
